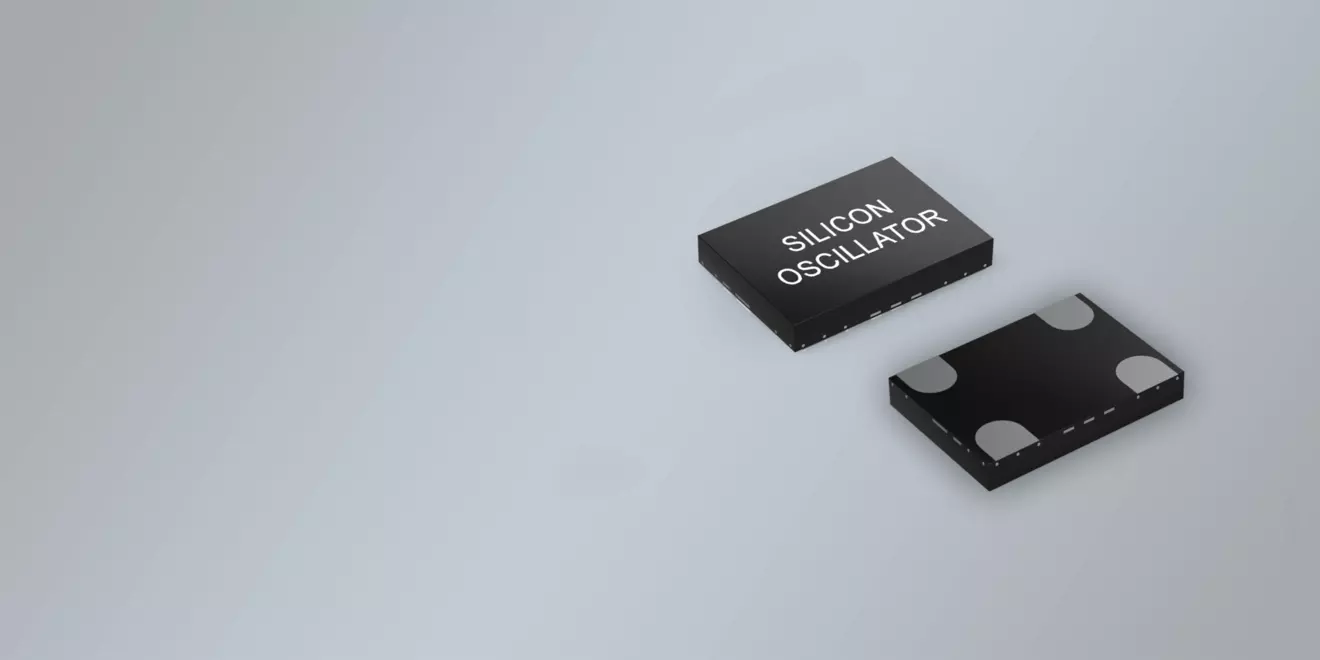

SMD ULTRA-LOW POWER 32.768 kHz OSCILLATORS
- Oscillateur à très faible puissance pour un faible coût
- Excellente fiabilité à long terme
- Ultra faible puissance : <1 µA
- Plus petit oscillateur boîtiers : 1,5 x 0,8mm / 2,0 x 1,2mm
- Résistance au vieillissement à long terme
- Échantillons express le jour même si commandés jusqu'à 02:00 p.m.
Nom du produit
ULPO-RB1
Package
SMD QFN/4pad
Dimensions (l x p x h)
1.5 x 0.8
Gamme de fréquences
32.768 kHz
PRODUCT NAME 2
ULPO-RB2
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
DELIVERY FORM
TAPE & REEL / 3000 pcs. per Reel
STORAGE TEMPERATURE RANGE
-55/+125°C
OPERATING TEMPERATURE RANGE
-10/+70°C ~ -40/+85°C
FREQUENCY STABILITY
±10ppm ~ ±20 ppm @25°C
±75ppm ~ ±100 ppm Temp.-Stab.PACKAGE DIMENSIONS
1.5 x 0.8 x 0.6 mm
2.0 x 1.2 x 0.6 mmSUPPLY VOLTAGE
1.2 V to 3.63 V
<100 PPM frequency stability over -40°C to +85°C temp range
• 2x better stability compared to quartz
• Improves system connectivity and RTC accuracy
No load or Vdd filter capacitors
• Eliminates all external capacitors
• Eliminates load-dependent start-up issues common with quartz XTALs
Reduced swing oscillator output
• Directly drives into MCU/PMIC/Chipset XTAL IN
• Programmable swing minimizes power
• Oscillator output is insensitive to load and operates with or without load capacitors
Ultra-low power: 900nA (typ)
• Extends battery life
Smallest packages: 1.5 x 0.8mm/2.0 x 1.2mm
• Saves board space
DATASHEET: SMD Ultra Low Power 32.768kHz Oscillator (ULPO-RB1)
DATASHEET: SMD Ultra Low Power 32.768kHz Oscillator (ULPO-RB2)
